Your experienced manufacturer for drive technology and custom-made products
We are one of the leading companies for electrical engineering and offer services as well as manufacturing and trading services in all areas of electrical drive technology.
As a specialist in drive technology, electrical engineering, series production and pump specialist, we are prepared for every challenge in the field of drive technology and are able to find a solution at any time.
Our range of services for you
Custom production
Trade / Export

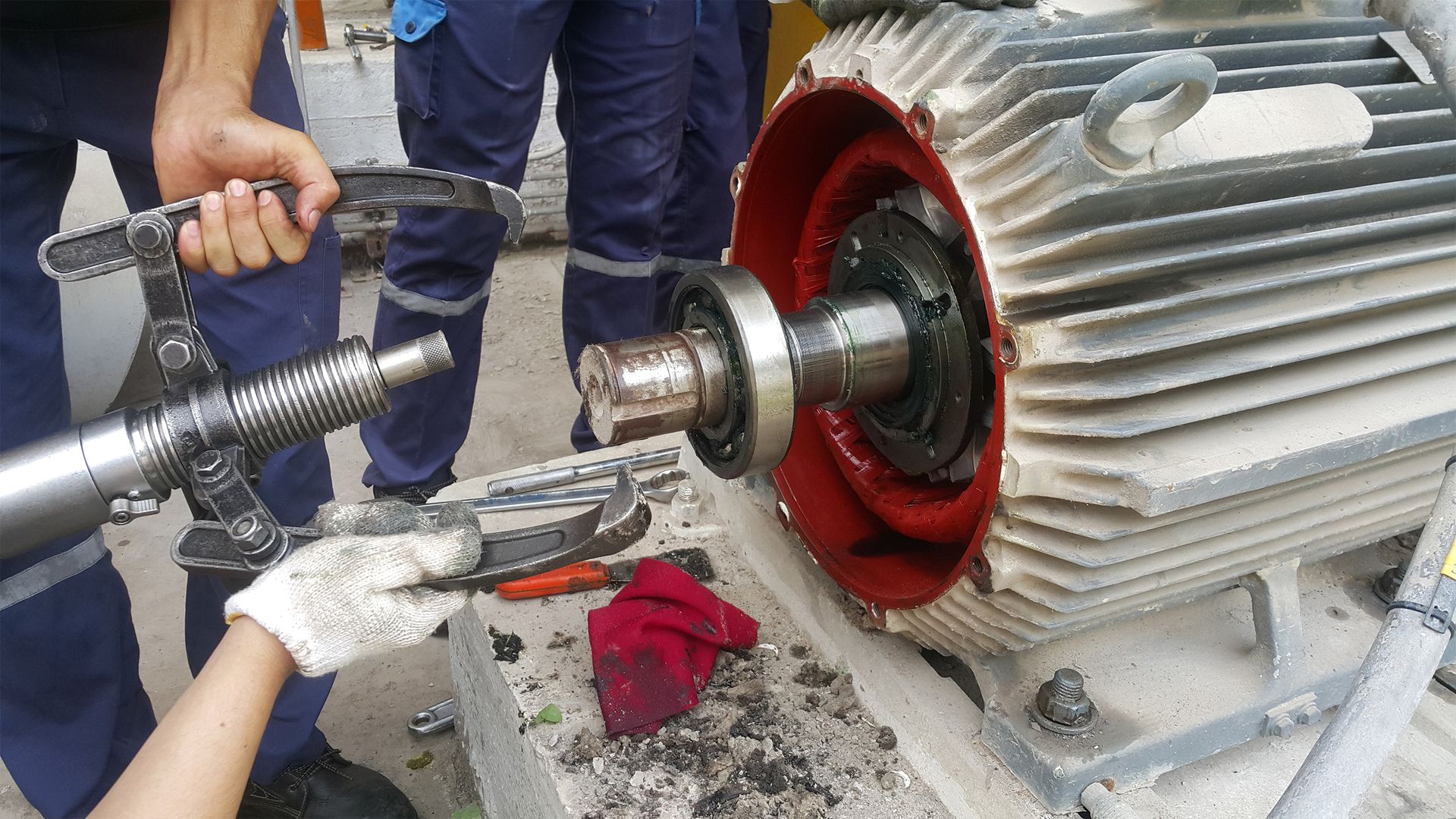

Repair
Pioneering technologies and partnership excellence Our formula for success for the highest quality and customer orientation
The use of pioneering technologies in winding technology, assembly and feeding technology, the latest testing equipment and test benches and ongoing employee training ensure and continually expand our market position. Reliable partnerships, the highest quality and consistent customer orientation are a fixed, general part of our company philosophy.
This principle gave Siemens AG the impetus to enter into a service cooperation with us that offers a customer-oriented service that meets the highest Siemens quality specifications for frequency converters, low-voltage motors and geared motors.
For you, this means: With us, you have a solid and reliable partnership from which you can access your added value at any time.
Our latest products:
Here you can find our current products in the custom-made range

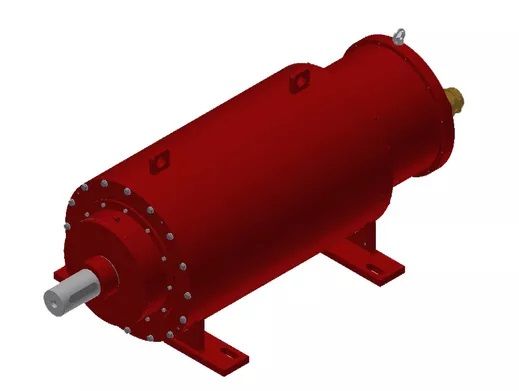

Pump motor
New

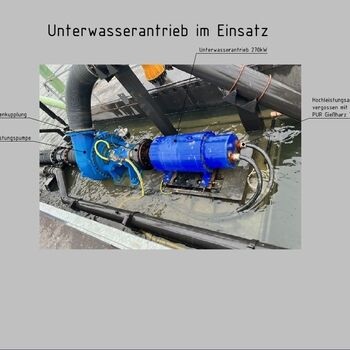

Submersible pump motors specially developed for sand and gravel dredgers
These IE5 class motors are unique on the PM pump motor market. They are characterized by extremely high power density, the smallest design on the market, and extremely high torque. The motor was consistently developed for maximum performance. It enables an easy conversion of the existing suction dredger unit to a complete Submersible unit with pump and directly coupled pump so that sand and gravel can be extracted from greater depths without using booster pumps. Due to its low weight, the dredger does not need to be extended. The existing frequency converter can often continue to be used for control. Due to the enormous power density and low power consumption, especially compared to commercially available high-pole three-phase motors, the complete conversion pays for itself in 2-3 years. If you already have a motor-pump combination, this can be done in just a few months.
Technical key data:
- Maximum water depth 100 meters, torques from 2500 Nm to 11,000 Nm, 200-800 kW
- Size: 280 to 355, flat wire winding, efficiency up to 98%, buried magnets
- Coated shafts, double mechanical seal with oil chamber, several leak sensors, versions with and without sensors, as well as a water-cooled above-water version for pressure booster pumps.
- nitrogen filling to prevent condensation
- Painting with HEMPEL Hempadur Multi- Strength
- Tests: Pressure resistance, leak test , performance test, immersion test
- Delivery with cast cables (lengths according to customer requirements)
PTO Ship-generator
New

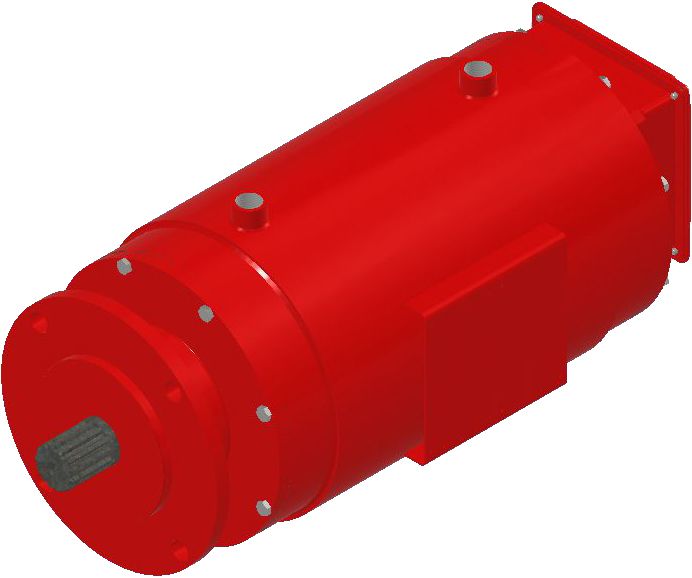

PM generators specifically for PTO drives

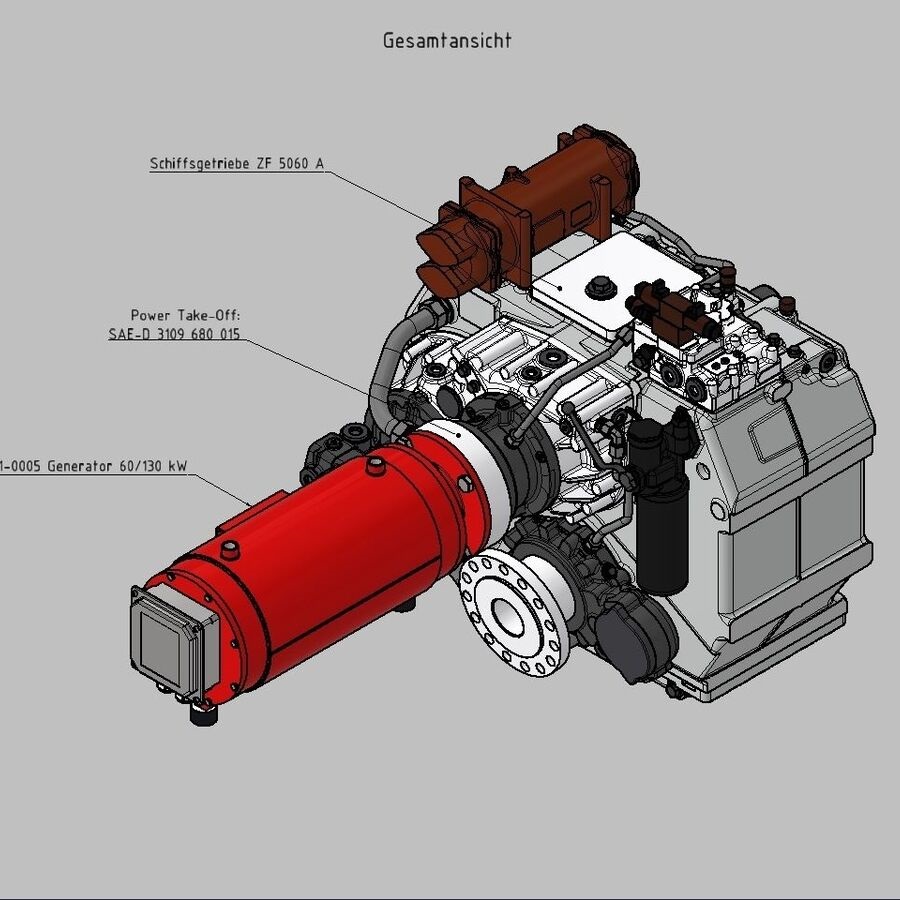

In collaboration with a leading luxury yacht manufacturer and Siemens AG, we have developed small and ultra-compact water-cooled PM generators that can be mounted directly on the ship’s gearbox (e.g. ZF gearbox) and, in conjunction with Siemens converters, generate a DC on-board network.
This enables a variety of new electric drive solutions, replacing hydraulic systems and reducing the size of the necessary on-board generators.
The use of PTO generators in combination with Siemens controls results in enormous savings potential and is an important contribution to CO2 reduction.
Technical key data:
- outputs of 5- 130 KVA
- Size: 100 to 160.
- voltage from 0-750 V AC
- efficiency up to 98%
- buried magnets
- water-cooled version
